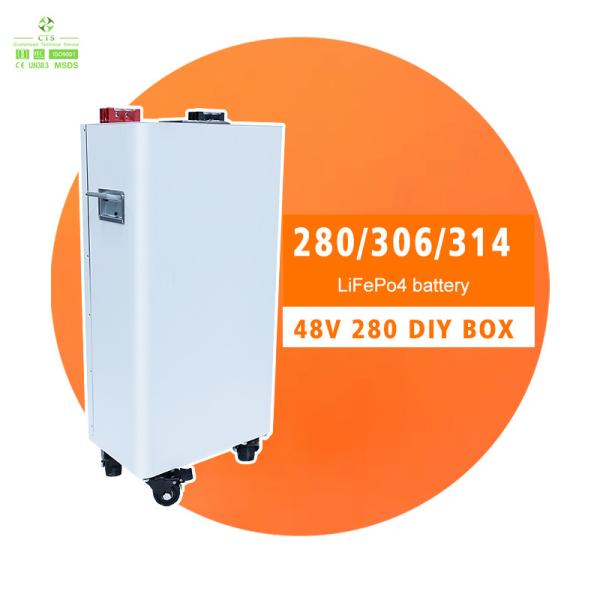

16S 48V 51.2V 280ah 304ah DIY Battery Kit With BMS Without Battery Cells

MOQ : 1

Price : 450

Payment Terms : L/C, D/P, T/T, D/P, Western Union

Supply Ability : 1000000pcs/month

Delivery Time : 7days

Packaging Details : carton case

Product name : 48V DIY Kit With BMS

Applicable cell : 16 pcs Lifepo4 280AH 306AH 314AH

Weight : 35kg

Size : 295mm*416mm*910mm

BMS : JK-PBxA16S-10P-15P-20P

Application : ESS

Contact Now

16S 48V(51.2V) 280ah 304ah DIY Kit With BMS Without Battery Cells

╣PRODUCT DESCRIPTION

ADVANTAGES:

✅ All accessories: The kit includes , BMS management system,
connecting wires, screws, and installation tools, which can solve DIY problems in one stop.
✅ High Capacity & Versatility
280AH large capacity, compatible with Lifepo4 280AH/306AH/314AH cells.
✅ Wide Temperature Range
Stable operation in extreme environments (-30℃~50℃) with IP60 protection.
✅ Safe & Durable
Epoxy plates and EVA foam provide insulation and shock absorption.
✅ Complete Accessories
Includes connecting plates, screws, tools (M6 socket wrench), and pre-drilled
epoxy boards for easy assembly.
✅ Step-by-Step Guidance
Clear assembly steps with diagrams
(cell placement, BMS wiring, cover installation).

✅ EU warehouse , 3~5 days DDP fast shipping with taxes paid !

╣INSTALLATION STEPS

Complete Accessories Includes connecting plates, screws, tools (M6 socket wrench), and pre-drilledepoxy boards for easy assembly.

Step 1:

Remove the Top Cover and Pressure Bar
Open the top cover and take out the pressure bar. Confirm the positions of the A and B boards.

Step 2:

Insulate the Enclosure
Attach each epoxy board as shown in the diagram. Make sure there are no gaps between the boards.

Step 3:

Fit in the Battery Cells
Arrange the battery cells as shown in the diagram. Pay close attention to the correct orientation of the positive and negative
terminals.

Step 4:

Install the Busbars
Install the connection pieces (busbars) according to the diagram. Make sure the busbar model and position are correct.

Step 5:

Power on the BMS
Insert the ribbon cables and turn on the power switch. Check whether the display screen is powered on.

Step 6:

Install the Top Cover
Secure the epoxy boards in place, cover with the top cover, and tighten the screws.

╣Our Advantages

	Traditional battery installation	CTS DIY Kits
Installation difficulty	Need professional electrician	General users can complete
Time consumption	It takes 1-2 hours	8--15 minutes
Wire harness	Complex wiring harness	Pre-installed components
Compatibility	Need to adjust the line	Plug and play,strong compatibility
Safety	You need to select your own BMS	Standard intelligent BMS protection

✅ Smart BMS Control
Real-time monitoring via Bluetooth APP parameter customization, and fault alerts.
✅ Parallel Configuration
Dip-switch settings for up to 15 parallel units, flexible expansion for large systems.
✅ User-Friendly Interface
PC software for voltage, current, and temperature monitoring, with password-protected settings.

Compatible Inverter Brand Compatiable with various inverter brands, GOODWE PYLON SOLARFAM VICTRON GROWATTSOLAX SOFAR LUXPOWER PV1800F LTW SOROTEC MEGAREVO VoltronicPower SRNE PYLONTECH Deye SMK...

╣Application

✅ Home & Commercial Energy Storage – Solar & Wind Off-Grid Energy Storage Systems
✅ UPS & Backup Power – Emergency Power Supply for Data Centers, Servers, and Medical Equipment
✅ Outdoor Camping Power – RV, Camping, and Ship Power
✅ Industrial & Agricultural Equipment – AGV Robots, Automation Equipment, Agricultural Irrigation
✅ Electric Vehicles & Golf Carts – Long Range, Strong Power

Why choose us?
✅ Factory direct sales, better price
✅ Grade A battery, quality assurance
✅ Smart BMS, safe and worry-free
✅ Support OEM & customized services
✅ 24-hour technical support, worry-free after-sales
