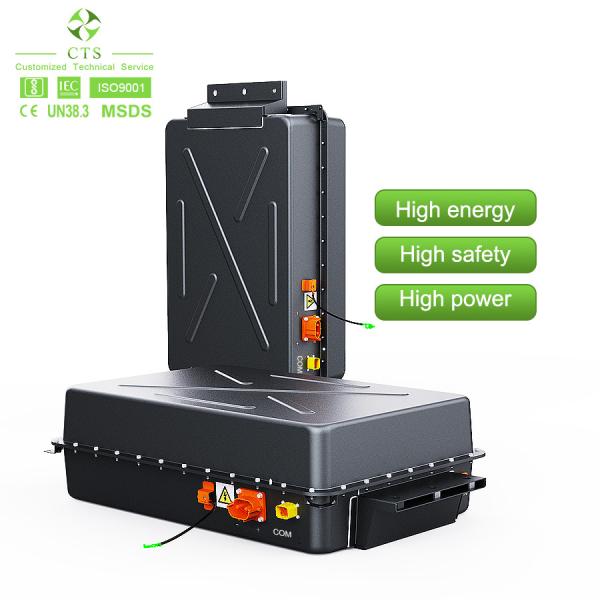

NMC Lifepo4 EV Battery Rechargeable 72V 96V 144v 100Ah 150ah 200ah 20kwh 40kwh battery for electric vehicle

Brand Name : CTS

Model Number : CTS-72100

Certification : CE//UN38.3/MSDS

Place of Origin : Hunan,China

MOQ : 2 units

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 untis per month

Delivery Time : 30 working days

Packaging Details : Polywood case

Price : 1500~1800USD

Voltage : 72V

capacity : 100Ah

Energy : 7200wh at 23±2℃

Cycle life : 3000 Cycles

Material : NMC battery

Warranty : 3years

Weight : 60kg

Contact Now

Customized rechargeable 72V 96V 144v 100Ah 150ah 200ah 20kwh 40kwh NMC lifepo4 EV battery for electric vehicle car

Dimensions

NMC Lifepo4 EV Battery Rechargeable 72V 96V 144v 100Ah 150ah 200ah 20kwh 40kwh battery for electric vehicle

Details

Parameters of 72v 100Ah NMC battery pack
No.	Items	Technical requirement	Note
1	Battery Type	NMC
2	Capacity(Ah)	100	@25°C
3	Volatge	72
4	Power(KWh)	7.2
5	Weight(kg)	80
6	Working Voltage range(DC V)	60-84
7	Continuous discharge current(A)	100	@EOL , @25'C
8	Peak discharge current(A)	200	For 30 seconds
9	Dimension (L/W/H, mm)	960567267

Core technologies

>>> Light weight and scalability <<<CTS select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density.

>>> BMS and Active Balance <<<

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol,such as over / under voltage protection, high current protection, over / under temperature protection.

>>> Thermal Management <<<

CTS can do thermal management design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

Product Safety and Related products

NMC 72V 200Ah Lithium battery
Battery Type	NMC
Capacity	200Ah @25°C
Voltage	72v
Weight	130.5kg
Working voltage	60v - 84v
Battery power. 14. 4 kWh Client Country: Canada, in operation since 2015

Lifepo4 96V 400Ah Lithium battery
Battery Type	Lifepo4
Capacity	400Ah @25°C
Voltage	96v
Weight	337kg
Working voltage	75-109.5v
Battery power: 38.4 kWh Client Country: New Zealand, In operation since 2020

NMC 144V 100Ah lithium battery
Battery Type	NMC
Capacity	100Ah @25°C
Voltage	144V
Weight	1305kg
Working voltage	120v - 168v
Battery power. 14. 4 kWh Client Country: Thalaind, In operation since 2020

Lifepo4 614v 100Ah lithium battery
Battery Type	Lifepo4
Capacity	100Ah @25°C
Voltage	614.4v
Weight	558kg
Working voltage	480v - 700.8v
Battery power: 61.44 kWh Client Country: UK, In operation since 2019

Application field

System Stability, high and low temperature resistance, long life, high cost performance,high safty, ultra-wide application range.
